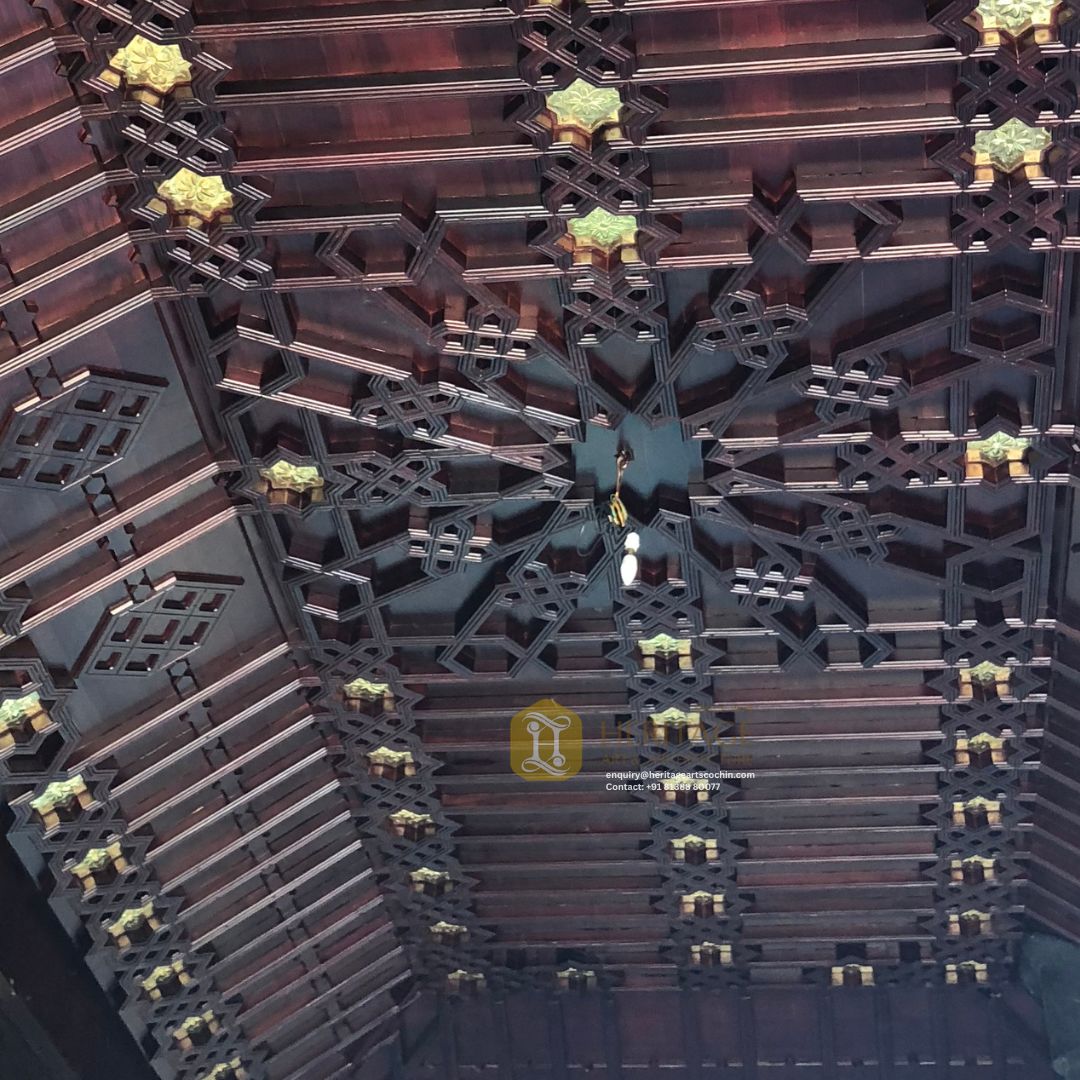

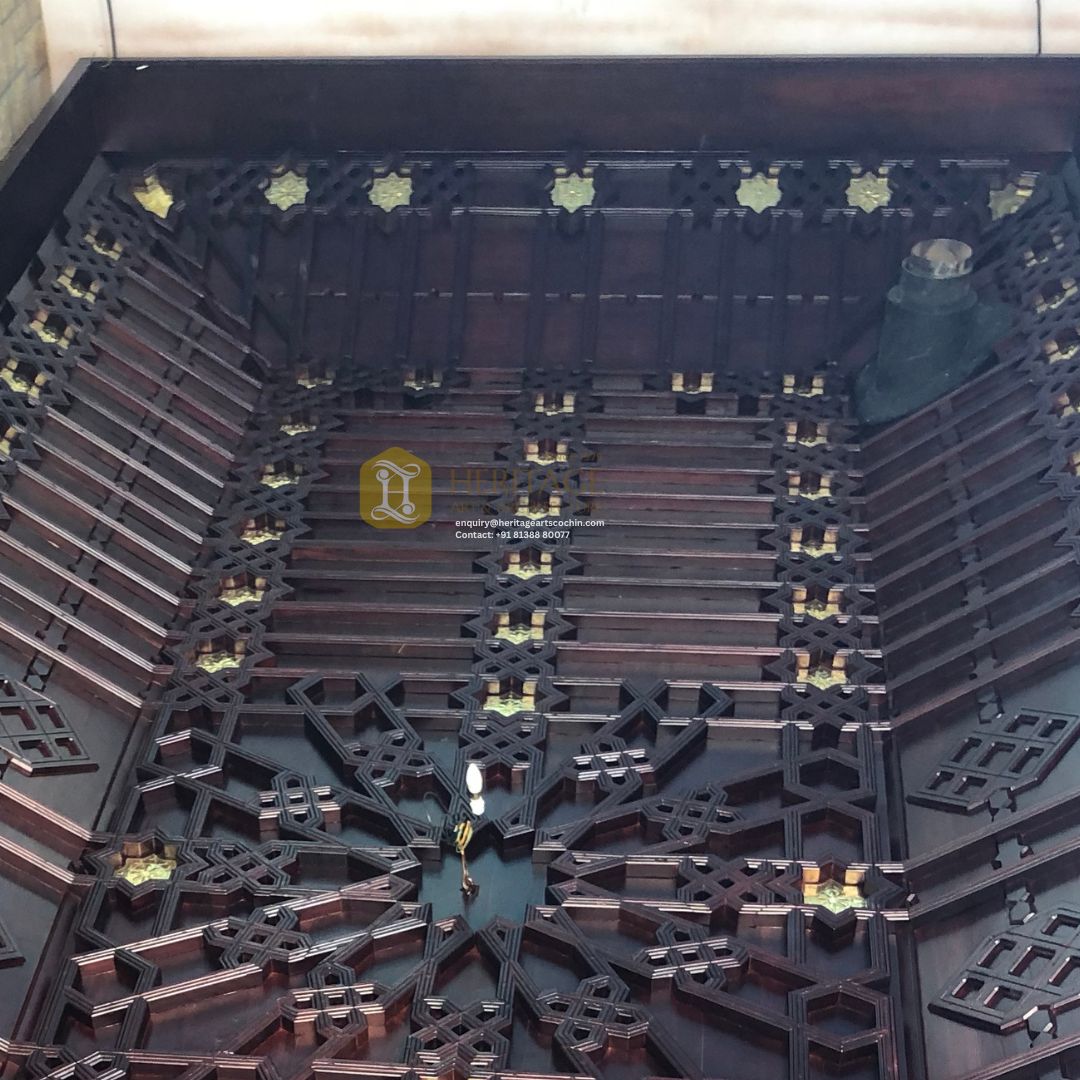

Raajasabha Wooden Ceiling

Primary Structural Frame (Outer & Inner Perimeter Beams)

Deep-stained hardwood support beams that define the outer perimeter and anchor the coffered tray architecture.

Central Radial Motif (Medallion Hub)

 An eight-pointed starburst pattern forming the central focal point, serving as an architectural anchor suitable for hanging pendant lights or chandeliers.

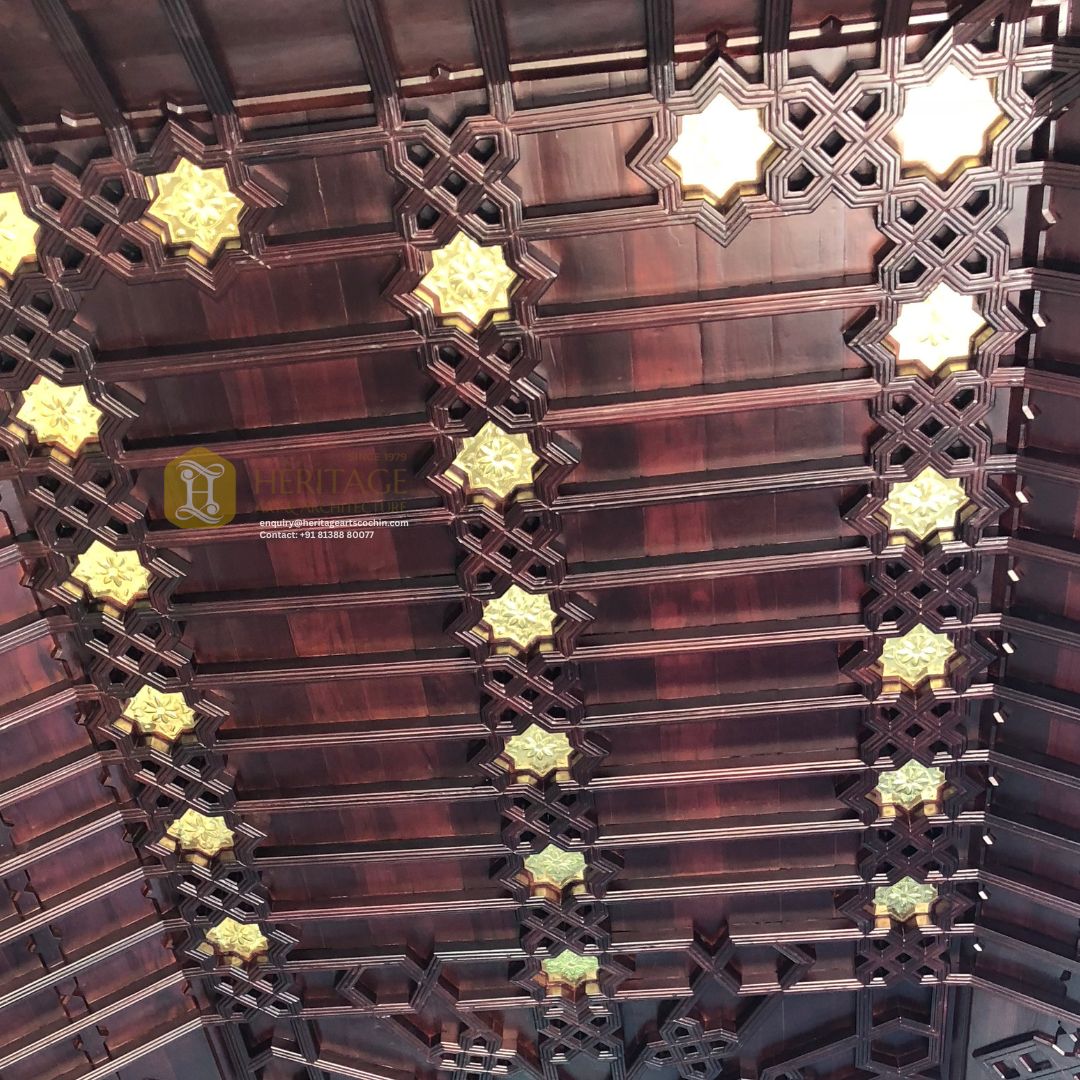

Geometric Lattice Grid (Jali Webbing)

Interlocking wooden lattice runners featuring repeating geometric star motifs (Islamic/Indo-Saracenic influence) that span across the ceiling fields.

Accent Inlays / Bosses

Brass/gilded multi-pointed star ornaments fitted into the intersections of the lattice grid, providing contrast against the dark wood.

Plank Infill Panels

Precision-fitted horizontal hardwood planks arranged in parallel tiers to create depth and texture within the recessed coffered sections.

Craftsmanship

• Joinery: Constructed using traditional mortise-and-tenon and lap joints to secure the intricate interlocking lattice without exposed fasteners.
• Hand Carving & Fitting: Each geometric star lattice element is individually hand-cut and fitted to maintain consistency across the vault.
• Finish & Coating: Multi-layer hand-rubbed wood stain in a rich dark walnut/mahogany shade, sealed with a satin-matte clear coat for protection against moisture and pest degradation.
• Metallic Accents: Brass inlay bosses polished and lacquer-coated to resist tarnish and oxidation.

Technical Specifications

Scale & Dimensions

• Overall Coverage: Suitable for standard room spans starting from 12ft x 16 ft up to custom large-scale hall configurations.
• Depth / Vault Drop: Approximately 12in to 18in drop from the structural slab to create the tray ceiling effect.
• Lattice Module Thickness: 1.5in x 1.5in solid wood profile for the overlay grid.
